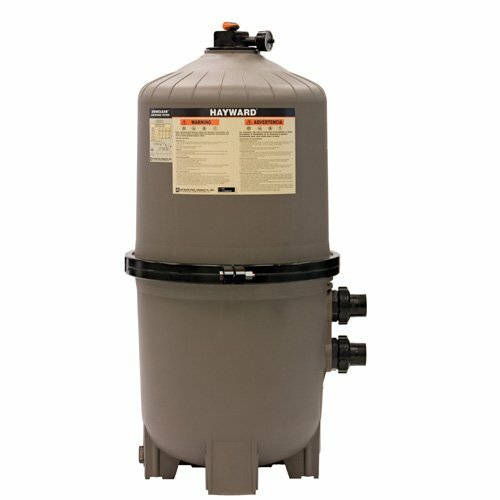

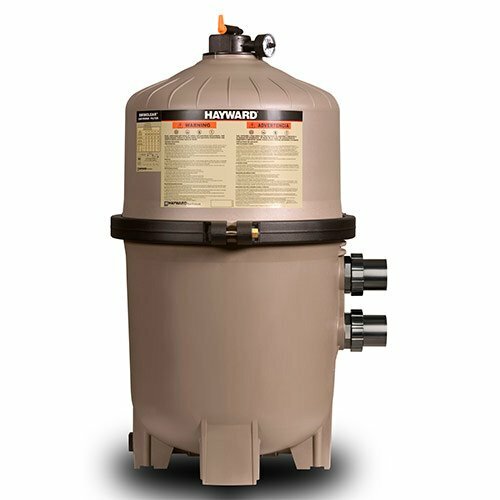

Hayward Swimclear Cartridge Filter: 325 Sq. Ft for 16' x 32' In-ground Pools

Hayward SwimClear reaches new horizons in cartridge filter technology. Industry leading hydraulic performance with maximum flow through all cartridge elements via a top manifold configuration ensures superior water clarity, extended time between maintenance and maximum energy savings. A cluster of four reusable polyester cartridge elements provides a choice of 225, 325, 425 and 525 square feet of heavy-duty, dirt-holding capacity and extra-long filter cycles. SwimClear filter tanks are made from a reinforced co-polymer material for the ultimate in strength, durability and long life – even for the toughest applications and environmental conditions. Discover the crystal clear results and reliable performance of SwimClear by Hayward.
Key Features:

• Manual Air Relief – A high capacity, rapid release manual air relief valve that bleeds air with a quick quarter tuner of the lever

• Top Manifold – Provides industry’s best energy saving hydraulic performance and utilizes the entire cartridge surface area to maximize time between cleaning

• Heavy-Duty, Tamper-Proof, One-Piece Clamp – Securely fastens tank top and bottom together and allows quick access to all internal components without disturbing piping or connections

• High-Strength Filter Tank – Made from durable, glass reinforced co-polymer to meet the demands of the toughest applications and environmental conditions, including in-floor cleaning systems

• Uniform Low-Profile Tank Base Design – Makes removal of cartridge elements fast and simple

• Full Size 1 ½” Integral Drain – Provides fast clean-out and flushing

• Combination Pressure and Cleaning Cycle-Indicator Gauge – Gives visual  indication when cartridge filter elements need cleaning

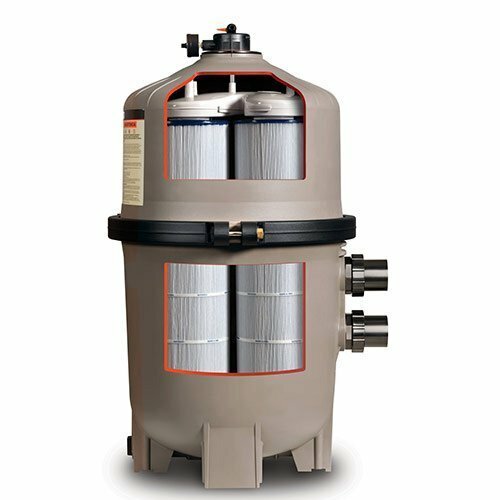

• Quad-Cluster Cartridge Elements – Provide 225, 325, 425 and 525 sq ft2 of filter area and extra dirt-holding capacity for long filter cycles. Precision-engineered core provide extra strength and superior flow

• Self-Aligned Tank Top and Bottom – Make access to servicing Quad-Cluster cartridge elements quick and easy

• CPVS Union Coupling Connection – Provides plumbing options of 2” or 2 ½” plumbing with 2” full flow internal plumbing for maximum performance

• Noryl Bulkhead Fittings – For extra strength and heat resistance
